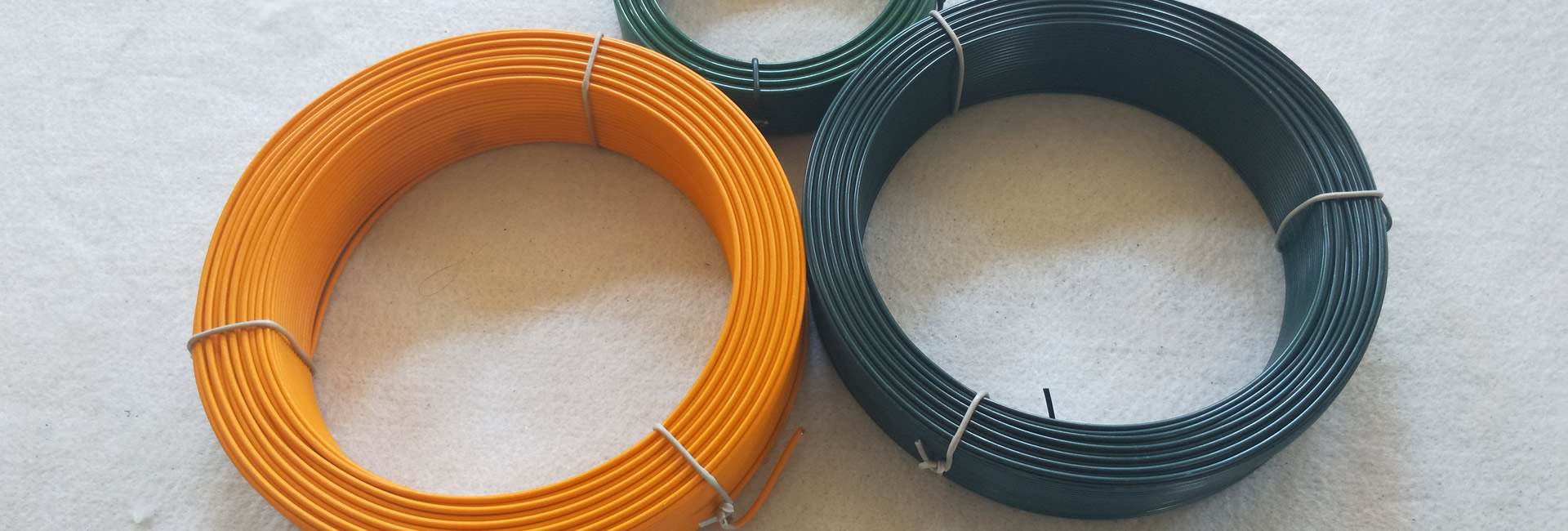

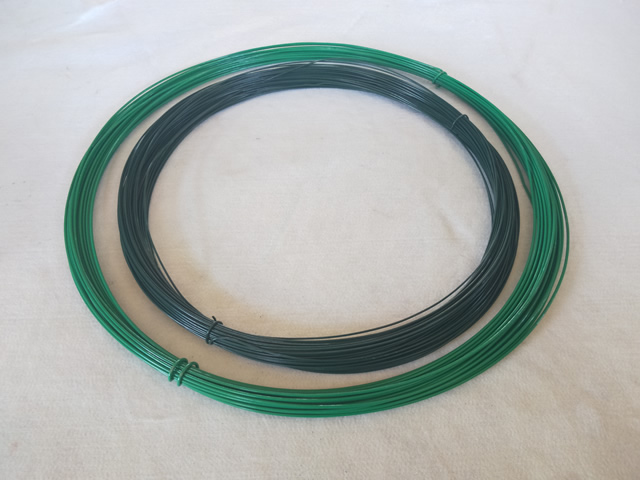

PVC Coated Wire
Plastic coated steel wire is processed with coating a layer of protective PVC, PE or Vinyl powder on the surface of the core wires. Base wires are usually Annealed wire, Galvanized wire, Galfan wires, etc....
Plastic coated steel wire is processed with coating a layer of protective PVC, PE or Vinyl powder on the surface of the core wires. Base wires are usually Annealed wire, Galvanized wire, Galfan wires, etc. The coating layer firmly bonded to the wire render the features of anti-aging, anti-corrosion, anti-cracking, long life and other characteristics.
Common Core wires:
Galv. wire
Hot dipped galv. wire
Galfan galv. wire
Annealed wire
Specification:
| Wire Guage in BWG | Wire Diameter Before Coated | After Coated | Color |
| 8# | 4.06mm | 4.99mm | Green, gray, white, or as request. |
| 10# | 3.25mm | 4.15mm | Green, gray, white, or as request. |
| 12# | 2.64mm | 3.20mm | Green, gray, white, or as request. |
| 14# | 2.03mm | 2.60mm | Green, gray, white, or as request. |
| 16# | 1.63mm | 2.00mm | Green, gray, white, or as request. |
| 18# | 1.22mm | 1.52mm | Green, gray, white, or as request. |
| 20# | 0.91mm | 1.20mm | Green, gray, white, or as request. |
| 22# | 0.71mm | 1.00mm | Green, gray, white, or as request. |
| 24# | 0.56mm | 0.86mm | Green, gray, white, or as request. |
| 26# | 0.46mm | 0.70mm | Green, gray, white, or as request. |
| 28# | 0.375mm | 0.68mm | Green, gray, white, or as request. |
| 30# | 0.315mm | 0.60mm | Green, gray, white, or as request. |
| 33# | 0.250mm | 0.50mm | Green, gray, white, or as request. |
| 35# | 0.210mm | 0.48mm | Green, gray, white, or as request. |
| Note: Custom sizes and colors acceptable | |||
