Perforated mesh is a metal mesh product, which is made of metal plate through a punching machine. Material: Stainless steel plate, high or low carbon steel plate, galvanized plate, aluminum plate....
Perforated mesh is a metal mesh product, which is made of metal plate through a punching machine.
Material: Stainless steel plate, high or low carbon steel plate, galvanized plate, aluminum plate, mg-ai plate etc.
Features:
• High opening rate: The opening rate of the punching mesh can reach more than 30% with good air perme ability and light transmission.
• Light weight: Due to the high opening rate, the perforated mesh is lighter in weight than the metal sheet of the same size.
• Corrosion Resistance: Perforated mesh can be made of metal plates of different materials, which have good corrosion resistance.
• Beautiful: The opening shape of the punching mesh can be customized according to customer needs, and various beautiful patterns and shapes can be produced.
• Easy processing: Perforated mesh can be cut, bent, welded and processed ...
• Environmental protection: The perforated mesh can be recycled and reused.
Parameters:
Product Name | Perforated Metal Mesh |
Keywords | Sheet Plate Punching Mesh |
Thickness | 0.3mm-10mm |
Opening Rate | 5%-80% |
Aperture | 0.5mm-200mm |
Hole Distance | 1mm-200mm |
Size | 1mx2m, 1.22mx2.44m, 1.5mx3m,etc |
Shape | Square, Round, Oval, etc |
Tensile Strength | 500MPa / 100MPa |
Hardness | 150-200HB / 30-50HB |
Area Density | 20%-60% |
Application:

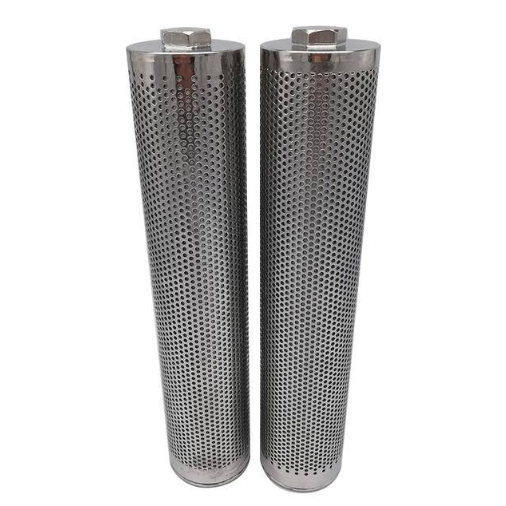

Perforated Metal sheet is broadly used in Industrial and Architectural applications such as:oil filters, grain sifters, sound isolation and ventilation.

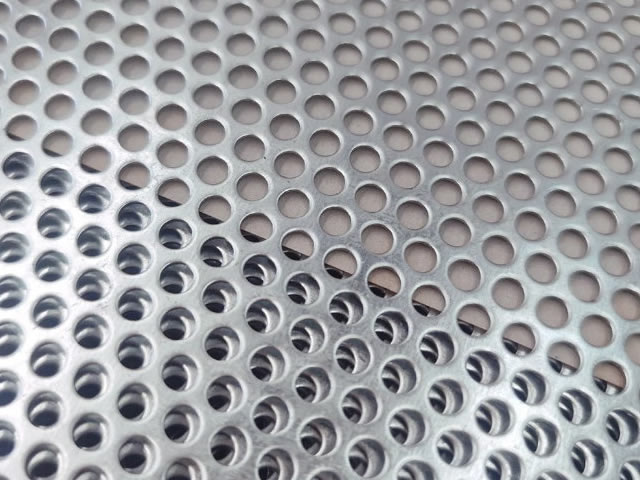

The round hole perforation is the most popular type of perforated pattern.
